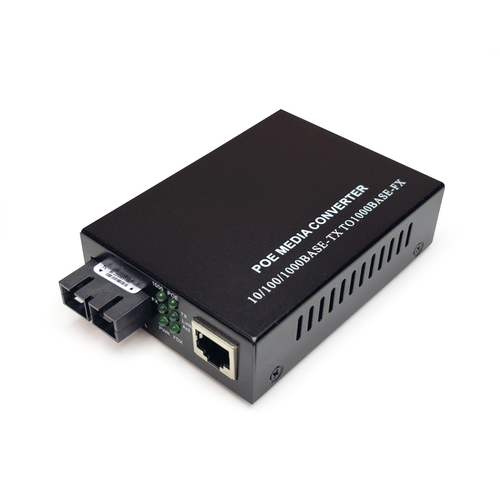

Gigabit Ethernet (1000-Mbps) PoE+ Media Converter

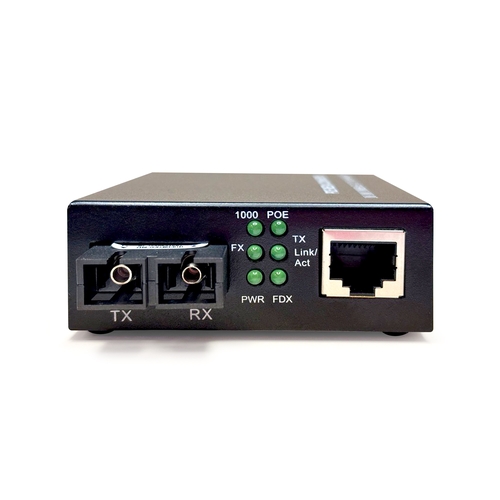

Use the PoE PSE Media Converter 10/100/1000BASE-T to 1000BASE-SX/LX to connect two types of network segments easily and inexpensively. It features a UTP RJ-45 port and a fiber port. Depending on the model, the fiber port can be an SFP slot, or a singlemode or multimode duplex fiber SC connector. The SFP model is customizable using swappable SFPs for singlemode or multimode applications.

The media converter automatically detects 10-/100-/1000-Mbps bandwidth on the copper side and supplies power to PoE+ powered devices. The converter includes an AC power supply to power the unit.

RJ-45 Interface The transmission media adopts CAT5 twisted-pair with maximum length of 100 meters (330 ft.).
Fiber Interface SC fiber interface is a duplex mode type which includes two sets of optical transceivers: TX and RX.
Cable Requirements
UTP Cable: Cat5 UTP Cable;
Singlemode: 8.3/125, 8.7/125, 9/125, 10/125μm;
Multimode: 50/125, 62.5/125μm, 100/140μm
Humidity 5-90% non-condensing
MTBF 114,000 hours
Operating temperature 32 °F to 122°F (0°C to 50°C)
Operation Full/Half duplex mode
Power

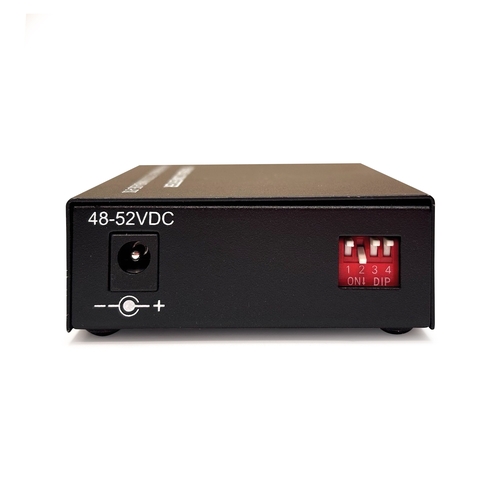

Power Supply Interface: The AC power supply is connected to AC input jack of media converter through the attached AC power cable.;
Max Power: 25.5W
Standards IEEE 802.1q/IEEE 802.3z 1000Base-TX/FX standard IEEE 802.3af Interface
Storage temperature -40°F to 158°F (-40°C to 70°C)

(1) Gigabit Ethernet (1000-Mbps) PoE+ Media Converter
(1) AC Power Supply
(1) Power Cord
