Guide to Keyboard, Video and Audio connectors
DVI
DVI-I Single Link
See pinning diagram
DVI-I Dual Link

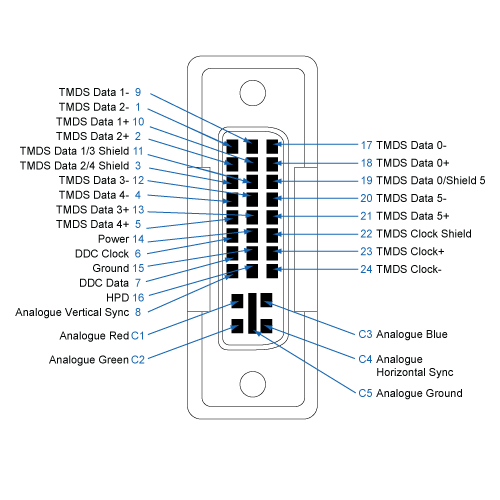

See pinning diagram
DVI-D Single Link

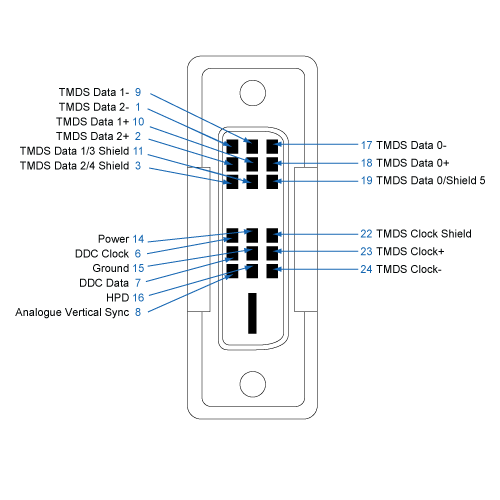

See pinning diagram
DVI-D Dual Link
See pinning diagram
DVI-A
See pinning diagram
DisplayPort
DisplayPort
See pinning diagram
Mini DisplayPort
See pinning diagram
HDMI
HDMI
See pinning diagram
Micro HDMI
See pinning diagram
Miscellaneous
VGA (HD15)

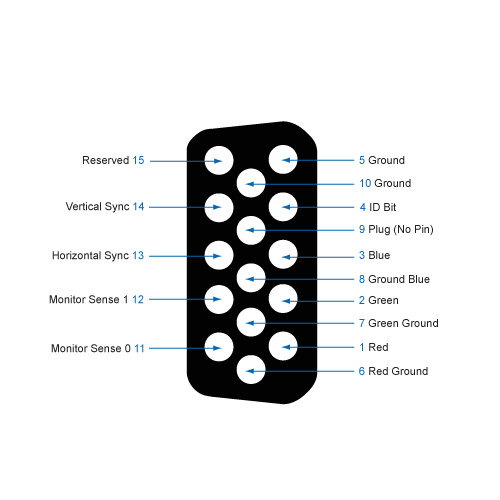

See pinning diagram
S-Video

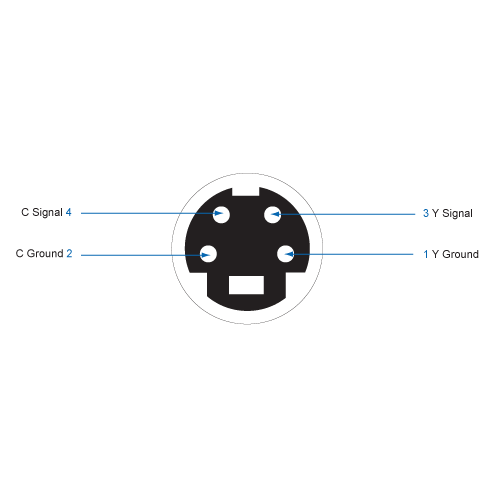

See pinning diagram
TOSLINK
RCA
BNC
F-Type Coax
NOTE: Images are not to scale.
